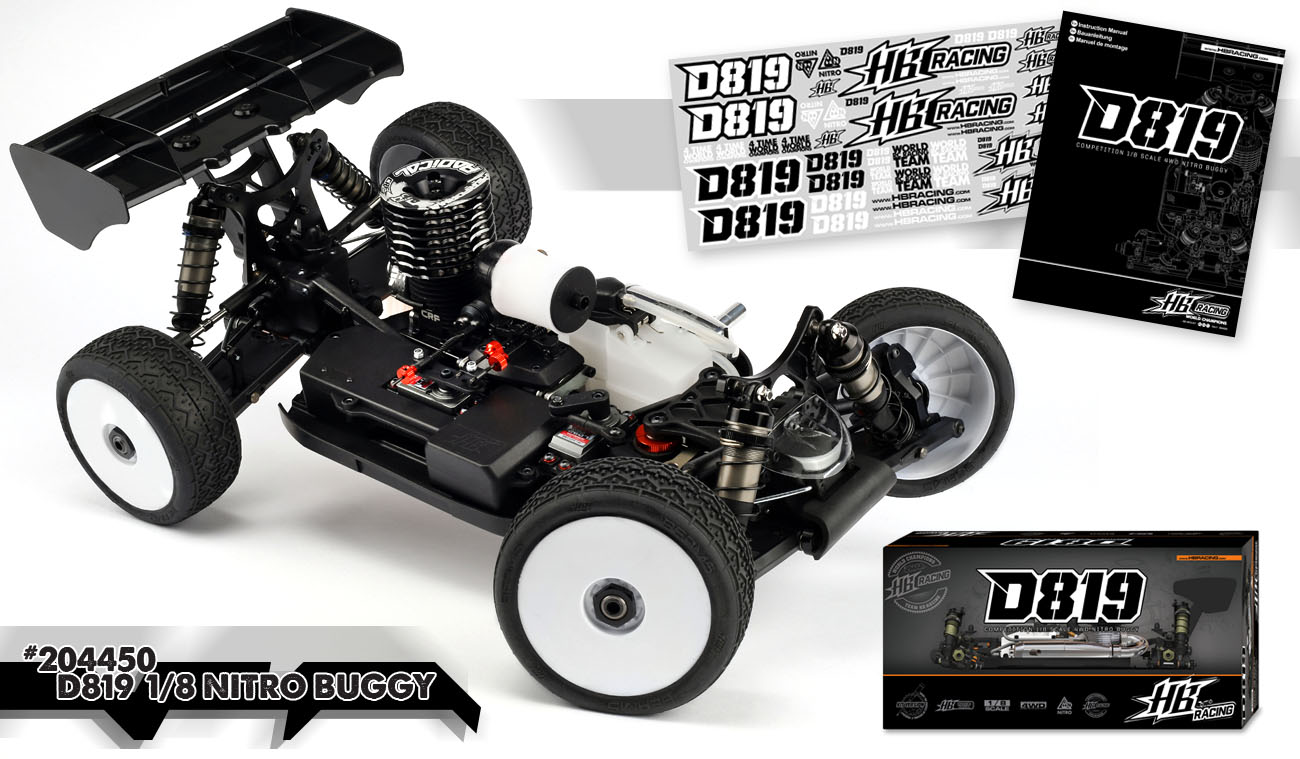

New from HB Racing is the D819 nitro 1/8 buggy. The latest iteration of the World Champion line of buggies from HB Racing, the D819 adds the latest high performance parts to keep it ahead of the competition.
The foundation for the D819 starts with a 7075 aircraft aluminum chassis that adds 4mm of length to the rear of the car which allows a longer wheelbase (up to the maximum regulation) and shifts the overall center of gravity for more stability, especially on high-speed corners. The chassis is symmetrical for better balance and more consistent jumping and cornering. And it’s strategically machined to decrease weight and balance the flex characteristics. A machined aluminum center chassis brace that strengthens the center section of the car, and an updated chassis with countersunk mounting holes for the new brace.
A new machined aluminum engine mount is now a 1 piece design for simplicity, weight savings, and improved reliability. Mounting the engine and setting the gear mesh is easier than ever with the innovative new asymmetric engine mount cams. A complete competition 3-shoe clutch is included, along with sintered brake pads and double ground brake discs for fade free braking and consistent brake feel. Fully adjustable brake/throttle linkage is standard, as well as a racing fuel tank with stone clunk, and a lightweight foam air filter. A convenient covered electronics box allows easy removal for cleaning and maintenance, and easy access to servos. Included is a new flywheel that allows fitment of the latest engines, and the brake linkage now uses o-rings for improved reliability and more adjustability than springs.
Reliability has always been a trademark of the winning cars from HB Racing, and the D819 continues that tradition. The machined aluminum 17.5° front caster blocks are strengthened for improved durability. Drivetrain refinements include new front & rear diff pinion and center outdrive system for easier assembly and maintenance, and new center drive dogbones. A heavy duty machined & lightened steel spur is now included for added durability. The race-proven 4WD system uses tough sintered diff gears, precision machined steel input gears and spur gear, machined aluminum wheel hubs, and steel Universal Joints that are favored by our Team Drivers for improved performance on bumpy tracks.
With the release of the D819 we added a new front B Mount and revised rear hub carrier graphite plates for the latest geometry based on testing and racing around the world. The suspension features the unique HB Racing monocoque suspension arms that allow fine tuning of the stiffness of the front and rear arms to suit track conditions and driving styles. Racers can adjust the grip and feeling of the arms using optional stiff arms and carbon plates to increase the torsional stiffness of the suspension arms, which gives the car a more forgiving feeling at the limit, especially on high-speed and high-traction corners.
HB Racing big bore threaded coilover shock absorbers help soak up extreme bumps, jumps and potholes like our Team Drivers found on the World Championship track in Australia. The D819 suspension includes new narrow hubs to help meet width regulations with most wheels, front and rear machined aluminum shock towers, adjustable turnbuckles, front and rear sway bars with new 1 piece links, hinge pin inserts for easy toe and anti-squat settings, machined aluminum caster blocks, steering blocks, and new carbon graphite rear upright plates with improved geometry. Also included is our narrow rear shock tower that is a favorite of our Team Drivers for its more useful range of adjustment.
The D819 steering system is built for durability and easy adjustment. It features an aluminum servo saver arm and clamping servo saver adjustment nut, steel turnbuckles, aluminum drag link, highly adjustable Ackerman geometry using steering knuckle plates, and CNC machined aluminum steering blocks. The D819 includes aluminum front linkage geometry spacers that replace the plastic spacers for improved bumpsteer geometry, more precise adjustment, less flex, and we revised the screw lengths to accommodate the new spacers.

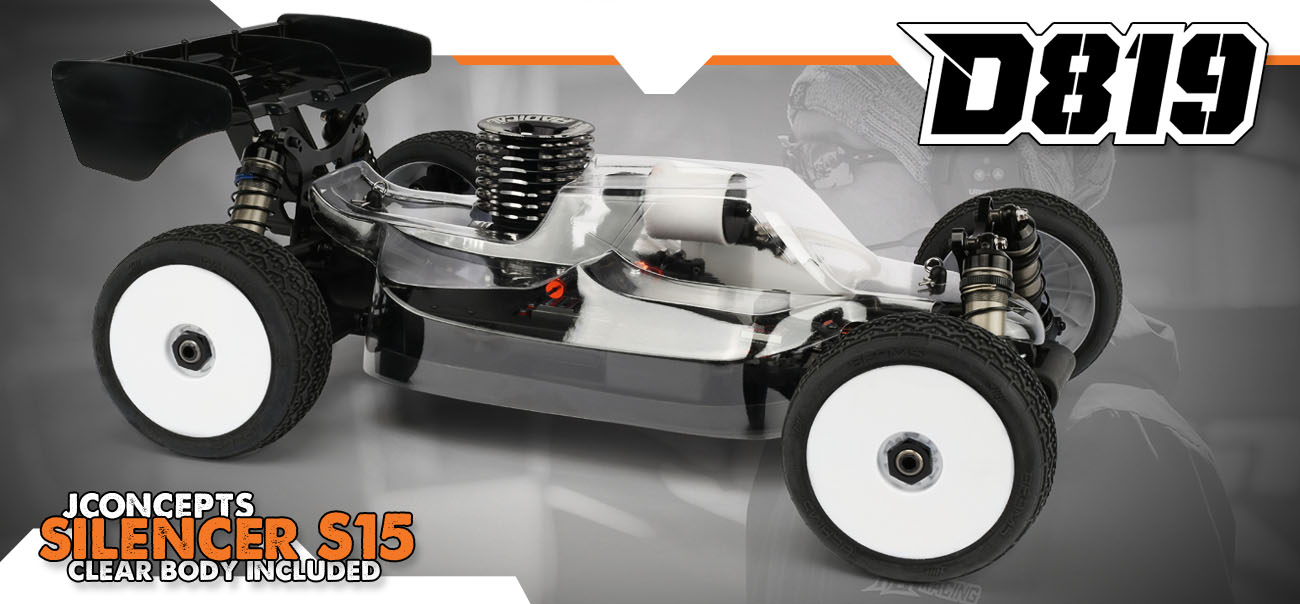

Topping the D819 kit is the new JConcepts Silencer S15 clear body, a popular choice with our team drivers. We’ve included out HB molded nylon wing that is lightweight and durable. Our popular one-piece High Wing Mount is standard equipment, which raises the wing 10mm, putting the wing in less turbulent air flow to help produce more downforce.
The new D819 follows the HB Racing concept… constant evolution to stay at the front of the pack.
- NEW 1 piece engine mount
- NEW Narrow hex hubs
- NEW 1 piece sway bar links
- NEW Heavy duty spur gear
- NEW JConcepts Silencer S15 clear body
- NEW Front & rear diff pinion
- NEW Center outdrive system
- NEW Revised graphite rear hub carrier plates
- NEW Engine mount cams
- NEW Revised B Mount suspension geometry
- HB molded nylon rear wing
- Narrow rear shock tower
- Aluminum center chassis brace
- Updated aluminum flywheel
- Front linkage geometry spacers
- Long wheelbase symmetrical 7075 aluminum chassis
- Fine adjustment aluminum D-Mount
- Universal drive shafts
- 43/13 diff gear ratio with lightweight gears
- HB monocoque suspension arms
- Sintered brake pads & metal rotors
- Aluminum servo saver arm
- One-piece lightweight wing mount
- Aluminum caster blocks
- Aluminum steering blocks
- Carbon graphite steering arms
- Steel turnbuckles
- Big bore threaded coilover shocks
- Hard anodized aluminum shock towers
- Aluminum arm blocks
- Threaded outer hinge pins
- Sway bars front and rear
- Split center bulkhead
- Lightweight spur gear
- Lightweight diff outdrives and center inputs
- Lightweight front aluminum axles
- Racing fuel tank with stone filter clunk
